A Complete CCNA Study Guide for Beginners & Career Changers

CCNA study guide searches usually come from one question: “How do I study for the CCNA exam without wasting time?” With hundreds of CCNA study guides, PDFs, and Cisco resources online, many learners feel overwhelmed and unsure which materials actually align with the exam. As a result, they memorize commands, skip fundamentals, and struggle when faced with scenario-based questions. Instead of dumping theory, this Cisco CCNA study guide follows the official 200-301 exam blueprint and explains what to study, why it matters, and how Cisco tests it.

CCNA study guide

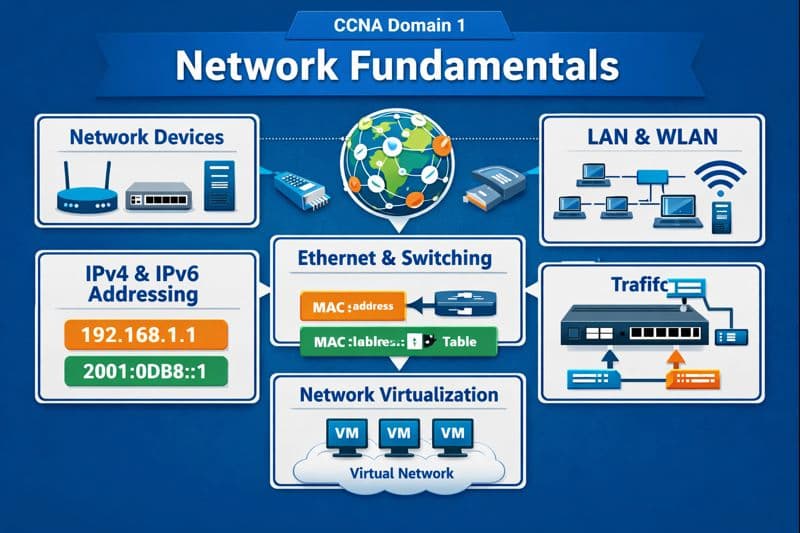

1.0 Network Fundamentals (20%)

Network Fundamentals

This domain builds the foundation for everything else in CCNA. Focus on what common network devices do, how LANs and WLANs are designed, and the essentials of IPv4/IPv6 addressing, basic Ethernet switching behavior, and virtualization basics.

1.1 Network Components

Routers

• Used to connect different IP networks
• Make forwarding decisions based on routing tables
• Operate at Layer 3 and separate broadcast domains
• Commonly placed at the network edge or WAN boundary

Layer 2 Switches

• Forward Ethernet frames using MAC addresses
• Maintain a MAC address table learned dynamically
• Used to connect devices within the same VLAN

Layer 3 switches

• Perform both switching and routing
• Enable communication between VLANs using IP addresses
• Frequently used in enterprise campus networks

Next-Generation Firewalls (NGFW)

• Inspect traffic beyond IP addresses and ports
• Can identify applications and users
• Provide advanced security controls compared to traditional firewalls

Intrusion Prevention Systems (IPS)

• Monitor traffic patterns for malicious activity
• Block known attacks automatically
• Often integrated with firewalls

Access Points (APs)

• Provide wireless access to the network
• Bridge wireless clients to the wired LAN
• Enforce SSID and wireless security settings

Wireless controllers

• Centralized management for multiple access points
• Handle roaming, authentication, and policy enforcement
• Improve consistency and scalability in WLANs

Endpoints

• Devices that generate or receive network traffic
• Include computers, mobile devices, printers, and IoT
• Often the primary target for security controls

Servers

• Provide shared services such as DNS, DHCP, and web applications
• Respond to client requests over the network
• Critical for application availability

Power over Ethernet (PoE)

• Delivers electrical power over Ethernet cables
• Used for APs, IP phones, and cameras
• Simplifies deployment and cabling design

1.2 Network topology architectures

Two-tier architecture

• Combines core and distribution functions
• Simple design with reduced cost
• Suitable for small to medium networks

Three-tier architecture

• Divides the network into access, distribution, and core layers
• Improves scalability and fault isolation
• Common in large enterprise environments

Spine-leaf architecture

• Common in data centers
• Each leaf switch connects to all spine switches
• Provides consistent latency and high bandwidth

Wide area network (WAN)

• Connects networks across long distances
• Relies on service providers or the internet
• Typically higher latency than LANs

SOHO networks

• Designed for small offices or home use
• Use simple, integrated networking devices
• Focus on ease of management

On-premises and cloud

• On-premises infrastructure is locally owned and managed
• Cloud infrastructure is provider-managed and scalable
• Hybrid environments combine both models

1.3 Physical interfaces and cabling

Single-mode fiber

• Supports very long distances
• Used for backbone and ISP connections

Multimode fiber

• Supports shorter distances
• Common in buildings and data centers

Copper cabling

• Inexpensive and easy to install
• Limited by distance and electromagnetic interference

Shared media ethernet

• Multiple devices share the same transmission medium
• Increases the chance of collisions (legacy networks)

Point-to-point ethernet

• One device per link
• Enables full-duplex communication

1.4 Interface and cable issues

• Collisions occur in shared media environments
• CRC errors indicate corrupted frames
• Duplex mismatch causes performance degradation
• Speed mismatch can prevent proper link negotiation

1.5 TCP vs UDP

TCP

• Reliable and connection-oriented
• Ensures ordered delivery and error recovery
• Used for web, email, and file transfers

UDP

• Connectionless and lightweight
• No guarantee of delivery or order
• Used for voice, video, and streaming applications

1.6 IPv4 addressing and subnetting

• IPv4 addresses consist of network and host portions
• Subnet masks define how addresses are divided
• Subnetting improves address efficiency and performance
• CIDR notation indicates prefix length

1.7 Private IPv4 addressing

• Used within internal networks
• Not routable on the public internet
• Commonly combined with NAT

1.8 IPv6 addressing

• Uses 128-bit hexadecimal addresses
• Designed to replace IPv4 address exhaustion
• Common subnet size is /64

1.9 IPv6 address types

Unicast

• One-to-one communication
• Includes global, unique local, and link-local addresses

Anycast

• Same address assigned to multiple devices
• Traffic routed to the nearest destination

Multicast

• One-to-many communication
• Replaces broadcast in IPv6

Modified EUI-64

• Generates interface identifiers from MAC addresses
• Used for automatic IPv6 configuration

1.10 Client IP parameters

• IP address identifies the device
• Subnet mask defines the local network
• Default gateway enables external communication
• DNS resolves domain names to IP addresses

1.11 Wireless principles

Nonoverlapping Channels

• Reduce interference between access points
• Improve wireless performance

SSID

• Identifies a wireless network
• Maps clients to a WLAN configuration

Radio Frequency (RF)

• Affected by distance, walls, and interference
• Signal strength decreases with obstacles

Encryption

• Protects wireless data from unauthorized access
• Common standards include WPA2 and WPA3

1.12 Virtualization fundamentals

• Virtual machines run multiple OS instances on shared hardware
• Containers share the host OS kernel for lightweight deployment
• VRFs separate routing tables on the same device

1.13 Switching concepts

MAC Learning

• Switches learn source MAC addresses dynamically
• Entries are stored in the MAC address table

Frame Switching

• Known unicast frames are forwarded to specific ports

Frame Flooding

• Unknown destination frames are sent to all ports in a VLAN

MAC Address Table

• Maps MAC addresses to switch ports
• Enables efficient forwarding decisions

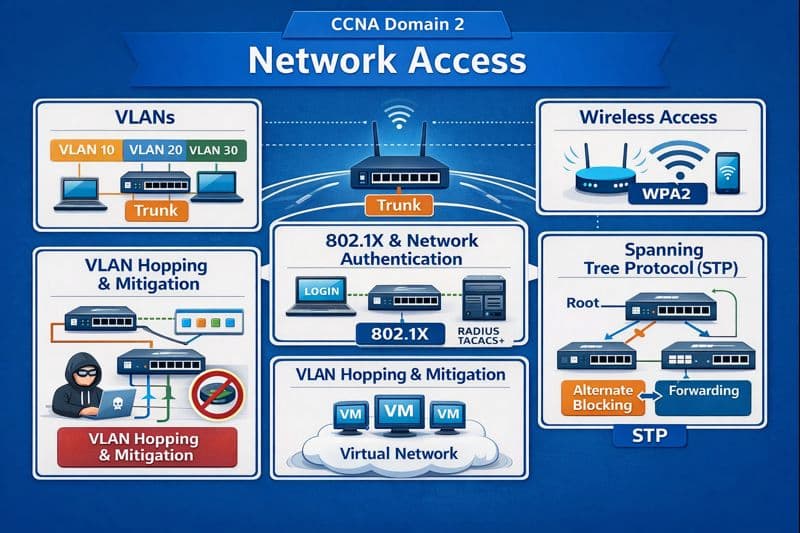

2.0 Network Access (20%)

Network Access

This domain focuses on Layer 2 connectivity at the access layer, including VLANs, trunking, loop prevention, link aggregation, and wireless access. You should understand how switches connect devices, how traffic is segmented, and how redundancy is handled safely.

2.1 VLAN Configuration and verification

VLAN concepts

• VLANs logically segment a network on the same physical infrastructure
• Each VLAN forms a separate broadcast domain
• VLANs reduce broadcast traffic and improve security and performance

Access ports (Data and voice)

• An access port belongs to one VLAN only
• Data VLAN carries user traffic such as PCs and printers
• Voice VLAN carries IP phone traffic
• Voice VLAN allows prioritization of voice traffic using QoS

Default VLAN

• VLAN 1 exists by default on Cisco switches
• Many control protocols use VLAN 1 automatically
• Best practice is to avoid using VLAN 1 for user traffic

Inter-VLAN connectivity

• Devices in different VLANs cannot communicate by default
• Inter-VLAN routing enables communication between VLANs
• Common methods:
  • Router-on-a-stick
  • Layer 3 switch using SVIs

2.2 Interswitch connectivity

Trunk Ports

• Trunk ports carry traffic for multiple VLANs
• Commonly used between switches or between switch and router
• Required for VLANs to span across multiple switches

IEEE 802.1Q

• Industry standard for VLAN tagging
• Adds a VLAN ID tag to Ethernet frames
• Allows switches to identify VLAN membership on trunk links

Native VLAN

• Native VLAN traffic is sent untagged on a trunk
• Default native VLAN is VLAN 1
• Native VLAN mismatch can cause:
  • Connectivity issues
  • Security vulnerabilities

2.3 Layer 2 Discovery Protocols

Cisco Discovery Protocol (CDP)

• Cisco proprietary discovery protocol
• Allows Cisco devices to identify directly connected neighbors
• Provides information such as:
  • Device ID
  • Interface ID
  • Device type

Link Layer Discovery Protocol (LLDP)

• Open, vendor-neutral discovery protocol
• Performs a similar function to CDP
• Used in multi-vendor environments

2.4 EtherChannel

EtherChannel concepts

• Combines multiple physical links into one logical link
• Increases bandwidth and provides redundancy
• Seen as a single interface by Spanning Tree

Link Aggregation Control Protocol (LACP)

• IEEE standard (802.3ad)
• Automatically negotiates which links form the EtherChannel
• Helps prevent configuration errors

2.5 Spanning Tree Protocol (Rapid PVST+)

Spanning tree overview

• Prevents Layer 2 loops in switched networks
• Loops can cause broadcast storms and MAC table instability
• Rapid PVST+ provides faster convergence than traditional STP

Root bridge and port roles

• Root Bridge is the central reference point for STP
• Switch ports are assigned roles:
  • Root Port: best path to the root bridge
  • Designated Port: forwards traffic for a segment
  • Alternate Port: backup path

Port states

• Rapid STP uses simplified states:
  • Discarding
  • Learning
  • Forwarding
• Allows faster transition during topology changes

PortFast

• Skips STP listening and learning states
• Allows immediate forwarding
• Should only be enabled on access ports connected to end devices

STP protection features

• BPDU guard: Shuts down a port if a BPDU is received
• Root guard: Prevents a port from becoming a root port
• Loop guard: Prevents loops caused by unidirectional links
• BPDU filter: Suppresses BPDU transmission in specific cases

2.6 Cisco wireless architectures and AP modes

Wireless architectures

• Autonomous APs: Each AP operates independently
• Controller-based WLANs: APs are centrally managed by a controller

AP modes (High-level)

• APs can operate in different modes depending on design
• Controller-based WLANs provide:
  • Centralized configuration
  • Better roaming support
  • Easier scalability

2.7 WLAN physical infrastructure

WLAN components

• Access Points (APs)
• Switches (access and distribution layers)
• Wireless LAN Controller (WLC)

Physical connections

• APs typically connect to access-layer switches
• Switch ports may be:
  • Access ports (single VLAN)
  • Trunk ports (multiple SSIDs mapped to VLANs)
• WLCs may use Link Aggregation (LAG)

2.8 Network device management access

Management Methods

• Console: Local, out-of-band access
• SSH: Secure remote CLI access
• Telnet: Insecure, legacy remote access
• HTTP/HTTPS: Web-based management
• TACACS+/RADIUS: Centralized authentication and authorization
• Cloud-managed: Devices managed via cloud platforms

2.9 WLAN GUI Configuration

WLAN configuration concepts

• Create WLANs and SSIDs
• Configure wireless security (WPA2/WPA3)
• Apply QoS profiles
• Adjust advanced WLAN settings

Client connectivity

• Clients must:
  • Select the correct SSID
  • Match security settings
  • Provide correct credentials
• Common WLAN issues include:
  • Authentication failures
  • IP address assignment problems
  • Unstable connections

3.0 IP Connectivity (25%)

IP Connectivity

This domain focuses on how routers make forwarding decisions, how routes are learned, and how networks maintain connectivity and redundancy. You must understand routing logic, not just commands.

3.1 Routing table components

A routing table contains the information a router uses to forward packets.

• Routing protocol code
  • Identifies how the route was learned (connected, static, dynamic)
  • Helps determine route trustworthiness
• Prefix (Destination network)
  • The network address the route applies to
  • Compared against the destination IP of a packet
• Network mask
  • Defines how many bits belong to the network
  • Used for longest prefix matching
• Next hop
  • The IP address of the next router in the path
  • Indicates where packets should be forwarded
• Administrative Distance (AD)
  • Indicates the trust level of a routing source
  • Lower AD is preferred over higher AD
• Metric
  • Value used by a routing protocol to choose the best path
  • Different protocols use different metrics
• Gateway of last resort
  • Default route used when no specific route matches
  • Typically points toward the internet or WAN

3.2 Router forwarding decision process

Routers follow a specific order when selecting a route.

• Longest prefix match
  • The most specific route (longest subnet mask) is chosen first
  • Always evaluated before AD or metric
• Administrative distance
  • Used when multiple routes have the same prefix length
  • Route with the lowest AD is preferred
• Routing protocol metric
  • Used when routes come from the same protocol
  • Lower metric indicates a better path

3.3 Static routing (IPv4 and IPv6)

Static routes are manually configured by an administrator.

• Default route
  • Matches all destinations not found in the routing table
  • Often used to forward traffic toward an ISP
• Network route
  • Points to a specific destination network
  • Used for controlled, predictable routing
• Host route
  • Route to a single IP address
  • Uses a /32 mask (IPv4) or /128 prefix (IPv6)
• Floating static route
  • Backup static route with a higher AD
  • Used only if the primary route fails

3.4 Single-area OSPFv2

OSPFv2 is a dynamic routing protocol used within an autonomous system.

• Single-area design
  • All routers belong to the same OSPF area (Area 0)
  • Simplifies design and configuration
• Neighbor adjacencies
  • Routers exchange routing information with neighbors
  • Must match key parameters to form adjacency
• Network types
  • Point-to-point: direct router connections
  • Broadcast: multi-access networks such as Ethernet
• DR and BDR
  • Designated Router (DR) reduces routing overhead
  • Backup Designated Router (BDR) takes over if DR fails
• Router ID
  • Unique identifier for each OSPF router
  • Chosen based on configuration or highest IP address

3.5 First Hop Redundancy Protocols (FHRP)

First hop redundancy ensures default gateway availability.

• Purpose of FHRP
  • Prevents single point of failure at the default gateway
  • Provides continuous network access for hosts
• Virtual Gateway Concept
  • Hosts use a virtual IP address as their gateway
  • Multiple routers share responsibility for forwarding traffic
• Redundancy Behavior
  • One router is active
  • Another router is on standby, ready to take over

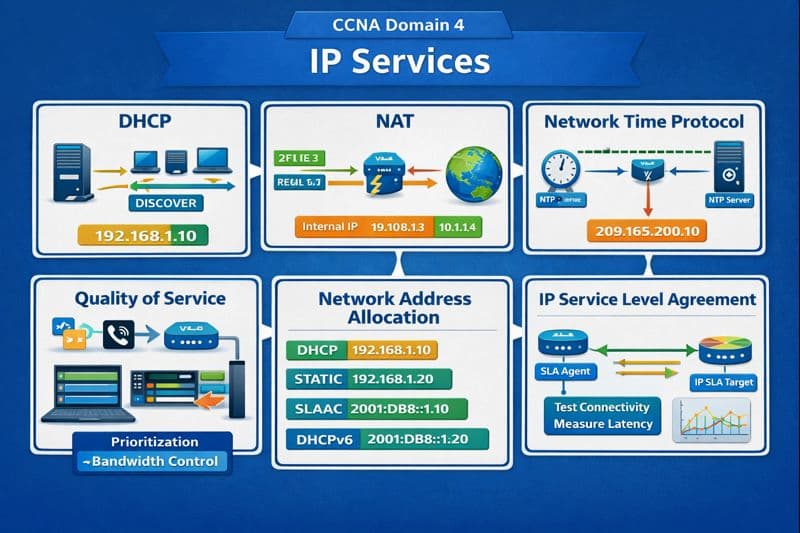

4.0 IP Services (10%)

IP Services

This domain focuses on core network services that support connectivity, management, and performance. You should understand what each service does, why it exists, and how it fits into a network, not deep configuration details.

4.1 Network Address Translation (NAT)

• NAT translates private IP addresses to public IP addresses
• Commonly used to allow internal devices to access the internet
• Conserves public IPv4 addresses

Inside Source NAT

• Translates internal (inside) addresses
• Can be:
  • Static NAT: one-to-one mapping
  • Dynamic NAT (pools): many-to-many mapping

4.2 Network Time Protocol (NTP)

• Synchronizes time across network devices
• Accurate time is critical for:
  • Log correlation
  • Security investigations
  • Network troubleshooting

• NTP modes
  • Client mode: device requests time
  • Server mode: device provides time to others

4.3 DHCP and DNS roles

DHCP (Dynamic Host Configuration Protocol)

• Automatically assigns IP configuration to clients
• Provides:
  • IP address
  • Subnet mask
  • Default gateway
  • DNS server

DNS (Domain Name System)

• Resolves domain names to IP addresses
• Allows users to access services using names instead of IPs
• Essential for most applications

4.4 Simple Network Management Protocol (SNMP)

• Used to monitor and manage network devices
• Collects information such as:
  • Interface status
  • CPU usage
  • Memory utilization

• SNMP components
  • Managed devices
  • SNMP agent
  • Network management system (NMS)

4.5 Syslog

• Centralized logging service
• Allows devices to send logs to a syslog server
• Helps with:
  • Troubleshooting
  • Auditing
  • Security monitoring
• Syslog severity levels
  • Range from emergency (most severe) to debug (least severe)
  • Severity helps prioritize issues

4.6 DHCP client and relay

DHCP client

• Requests IP configuration automatically
• Simplifies host network setup

DHCP relay

• Forwards DHCP requests across different networks
• Allows centralized DHCP servers to serve multiple subnets

4.7 Quality of Service (QoS)

• Manages traffic to ensure performance for critical applications
• Important for voice, video, and real-time traffic
• QoS concepts
  • Classification: identify traffic types
  • Marking: label traffic for priority handling
  • Queuing: manage packet order
  • Congestion: occurs when demand exceeds capacity
  • Policing: limits traffic rate
  • Shaping: smooths traffic flow

4.8 Secure Remote Access (SSH)

• SSH provides encrypted remote CLI access
• Replaces insecure protocols like Telnet
• Protects credentials and command traffic

4.9 File Transfer Services (TFTP and FTP)

TFTP

• Simple, lightweight file transfer
• No authentication
• Commonly used for device configuration backups

FTP

• More feature-rich than TFTP
• Supports authentication
• Used for transferring larger or sensitive files

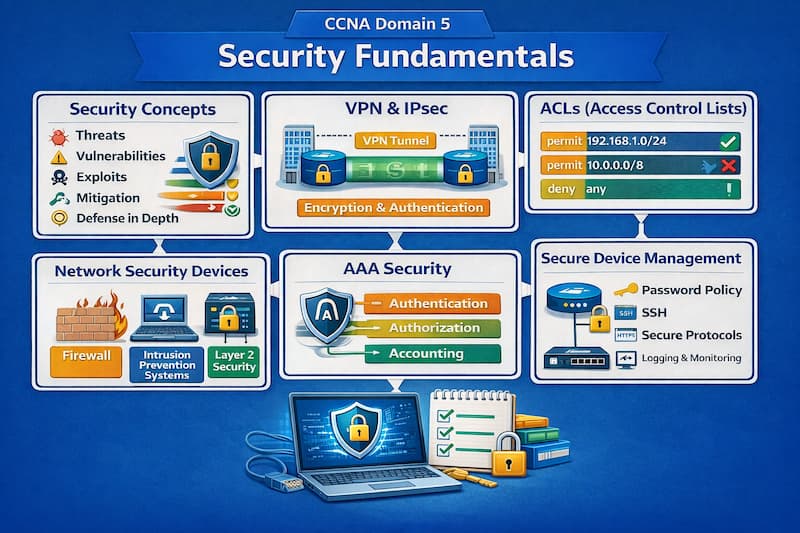

5.0 Security Fundamentals (15%)

Security Fundamentals

This domain introduces core security concepts and controls used to protect networks, devices, and users. The goal is to understand basic security principles, not advanced security engineering.

5.1 Key security concepts

• Threat
  • A potential source of harm to a network or system
  • Can be intentional (attacks) or unintentional (misconfiguration)
• Vulnerability
  • A weakness in a system, device, or process
  • Can be exploited by a threat
• Exploit
  • A method used to take advantage of a vulnerability
  • Often delivered through malware or malicious traffic
• Mitigation
  • Actions taken to reduce risk
  • Includes patches, configuration changes, and security controls

5.2 Security program elements

• User awareness
  • Educating users about security risks
  • Reduces human-related security incidents
• Training
  • Ongoing education for employees and IT staff
  • Helps enforce security best practices
• Physical access control
  • Restricts physical access to network equipment
  • Examples include locked rooms, badges, and cameras

5.3 Device access control (Local authentication)

• Controls who can access network devices
• Uses locally configured usernames and passwords
• Provides basic protection when centralized systems are unavailable
• Should be combined with strong password policies

5.4 Password policy and authentication alternatives

• Password management
  • Regular password changes
  • Avoid password reuse
  • Secure password storage
• Password complexity
  • Minimum length
  • Mix of characters (letters, numbers, symbols)
• Password alternatives
  • Multi-Factor Authentication (MFA): combines multiple verification methods
  • Certificates: use digital certificates for authentication
  • Biometrics: use physical characteristics (fingerprint, face recognition)

5.5 IPsec Virtual Private Networks (VPNs)

• VPNs create secure tunnels over untrusted networks
• Protect data confidentiality and integrity

Remote Access VPN

• Allows individual users to connect securely to a network
• Common for remote workers

Site-to-Site VPN

• Connects two networks securely
• Often used to link branch offices

5.6 Access Control Lists (ACLs)

• Used to permit or deny traffic based on rules
• Applied to router or Layer 3 switch interfaces

ACL characteristics

• Match traffic using IP address, protocol, and port
• Process rules from top to bottom
• First match determines the action

5.7 Layer 2 security features

• DHCP Snooping
  • Prevents rogue DHCP servers
  • Marks ports as trusted or untrusted
• Dynamic ARP Inspection (DAI)
  • Protects against ARP spoofing
  • Validates ARP messages using DHCP snooping database
• Port Security
  • Limits number of MAC addresses on a port
  • Can block or restrict unauthorized devices

5.8 Authentication, Authorization, and Accounting (AAA)

• Authentication: Verifies user identity
• Authorization: Determines what actions a user is allowed to perform
• Accounting: Tracks user activity for auditing and logging
• AAA improves centralized access control and visibility

5.9 Wireless Security Protocols

• WPA
  • Early wireless security standard
  • Now considered insecure
• WPA2
  • Uses stronger encryption
  • Widely deployed in enterprise and home networks
• WPA3
  • Improves encryption and protection against attacks
  • Recommended for modern WLANs

5.10 WLAN Security Configuration (WPA2-PSK)

• Uses a shared pre-shared key for authentication
• Common in small or home networks
• Easier to deploy than enterprise authentication
• Less scalable and secure than certificate-based solutions

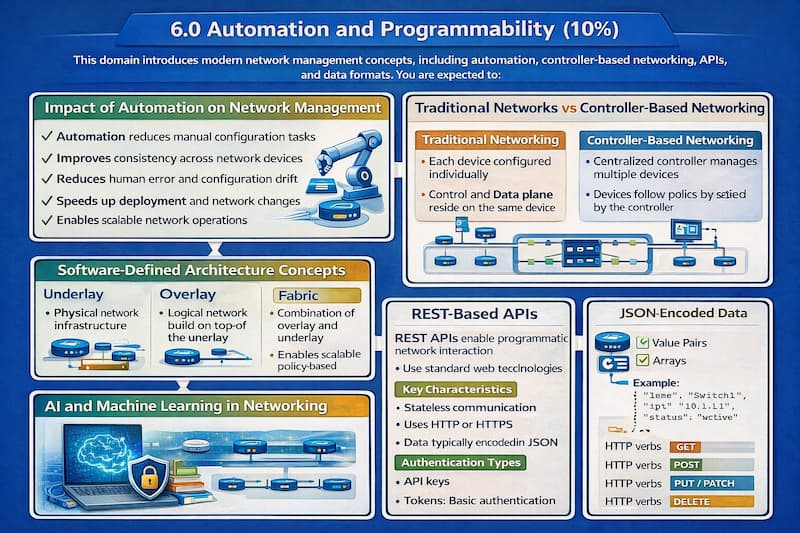

6.0 Automation and Programmability (10%)

Automation and Programmability

This domain introduces modern network management concepts, including automation, controller-based networking, APIs, and data formats. You are expected to understand what these technologies are and why they are used, not how to write complex programs.

6.1 Impact of automation on network management

• Automation reduces manual configuration tasks
• Improves consistency across network devices
• Reduces human error and configuration drift
• Speeds up deployment and network changes
• Enables scalable network operations

6.2 Traditional networks vs controller-based networking

Traditional networking

• Each device configured individually
• Control plane and data plane reside on the same device
• Changes require manual configuration per device

Controller-based networking

• Centralized controller manages multiple devices
• Devices follow policies defined by the controller
• Simplifies large-scale network management

6.3 Software-defined architecture concepts

Overlay, underlay, and fabric

• Underlay
  • Physical network infrastructure
  • Provides basic IP connectivity
• Overlay
  • Logical network built on top of the underlay
  • Abstracts physical topology
• Fabric
  • Combination of overlay and underlay
  • Enables scalable, policy-based networking

Control plane and data plane separation

• Control Plane
  • Makes forwarding decisions
  • Determines network paths and policies
• Data Plane
  • Forwards traffic based on control plane decisions
  • Handles actual packet movement
• Separation allows centralized decision-making and simpler devices

Northbound and southbound APIs

• • Northbound APIs
    • Used by applications to communicate with controllers
    • Allow automation tools and applications to request network services
  • Southbound APIs
    • Used by controllers to communicate with network devices
    • Push configuration and forwarding rules to devices

6.4 AI and machine learning in networking

• Artificial Intelligence (AI)
  • Simulates human decision-making
  • Used to analyze network behavior
• Machine Learning (ML)
  • Learns patterns from data
  • Helps predict failures and performance issues
• Generative AI
  • Creates new outputs based on learned data
  • Used for recommendations and automation assistance
• Predictive AI
  • Anticipates future network events
  • Helps prevent outages before they occur

6.5 REST-based APIs

• REST APIs enable programmatic network interaction
• Use standard web technologies

Key characteristics

• Stateless communication
• Uses HTTP or HTTPS
• Data typically encoded in JSON

Authentication types

• API keys
• Tokens
• Basic authentication

CRUD operations

• Create: add new resources
• Read: retrieve information
• Update: modify existing resources
• Delete: remove resources

HTTP verbs

• GET: retrieve data
• POST: create data
• PUT / PATCH: update data
• DELETE: remove data

6.6 Configuration management tools

Ansible

• Agentless automation tool
• Uses playbooks written in YAML
• Commonly used for configuration and deployment

Terraform

• Infrastructure-as-Code (IaC) tool
• Used to provision and manage infrastructure
• Supports multi-vendor and cloud environments

6.7 JSON-encoded data

• JSON is a lightweight data-interchange format
• Human-readable and machine-parsable
• JSON components

• Key-value pairs
• Objects enclosed in braces {}
• Arrays enclosed in brackets []
• Commonly used with APIs and automation tools

Final thoughts

The CCNA 200-301 exam focuses on understanding how networks operate, not just memorizing commands. This CCNA study guide follows the official exam domains and highlights the core concepts you need to master across networking fundamentals, routing, switching, services, security, and automation. Use it as a structured reference throughout your study process, and regularly test your understanding by applying these concepts to CCNA practice tests. Combining concept review with exam-style questions helps reinforce learning and identify gaps before the real exam.
